产品规格参数
basic parameters
技术参数 |
|
|
控制电压 |
4～32VDC(5V, 12V,24V均可) |
|
控制电流 |
16～35mA |
|
接通电压 |
18.5 V(DC) |
|
关掉电压 |
10 V(DC) |
|
反向电压 |
32 V(DC) |
|
负载电压 |
40～440 V(AC) |
|
负载电流 |
5A |
|
瞬间电压 |
900 V(AC) |
|
通态压降 |
<1.6 V(DC) |
|
通断时间 |
≤10ms |
|
断态漏电流 |
≤10ms |
|
介质耐压 |
≥1500 V(AC) |
|
绝缘电阻 |
5OOMΩ.500 V(DC)测试 |
|
环境温度 |
-30℃～+80℃ |
订货信息 |
||
|
描述 |
尺寸 |
标准包装 |
|

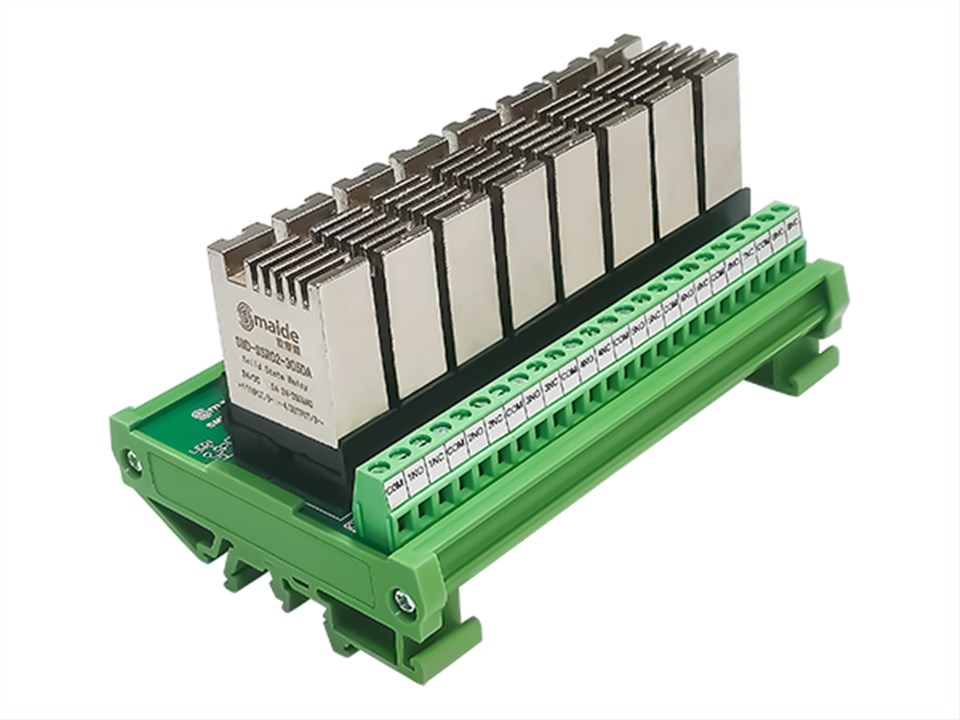

SMD-01DO-1NO-305DA |
17X86X62mm |
1 |
|
SMD-02DO-1NO-305DA |
37X86X62mm |
1 |
|
SMD-03DO-1NO-305DA |
52X86X62mm |
1 |
|
SMD-04DO-1NO-305DA |
67X86X62mm |
1 |
|
SMD-05DO-1NO-305DA |
81X86X62mm |
1 |
|
SMD-06DO-1NO-305DA |
97X86X62mm |
1 |
|
SMD-08DO-1NO-305DA |
127X86X62mm |
1 |
|
SMD-10DO-1NO-305DA |
157X86X62mm |
1 |
|
SMD-12DO-1NO-305DA |
187X86X62mm |
1 |
|
SMD-16DO-1NO-305DA |
247X86X62mm |
1 |
接线示意图
wiring diagram
